Features:

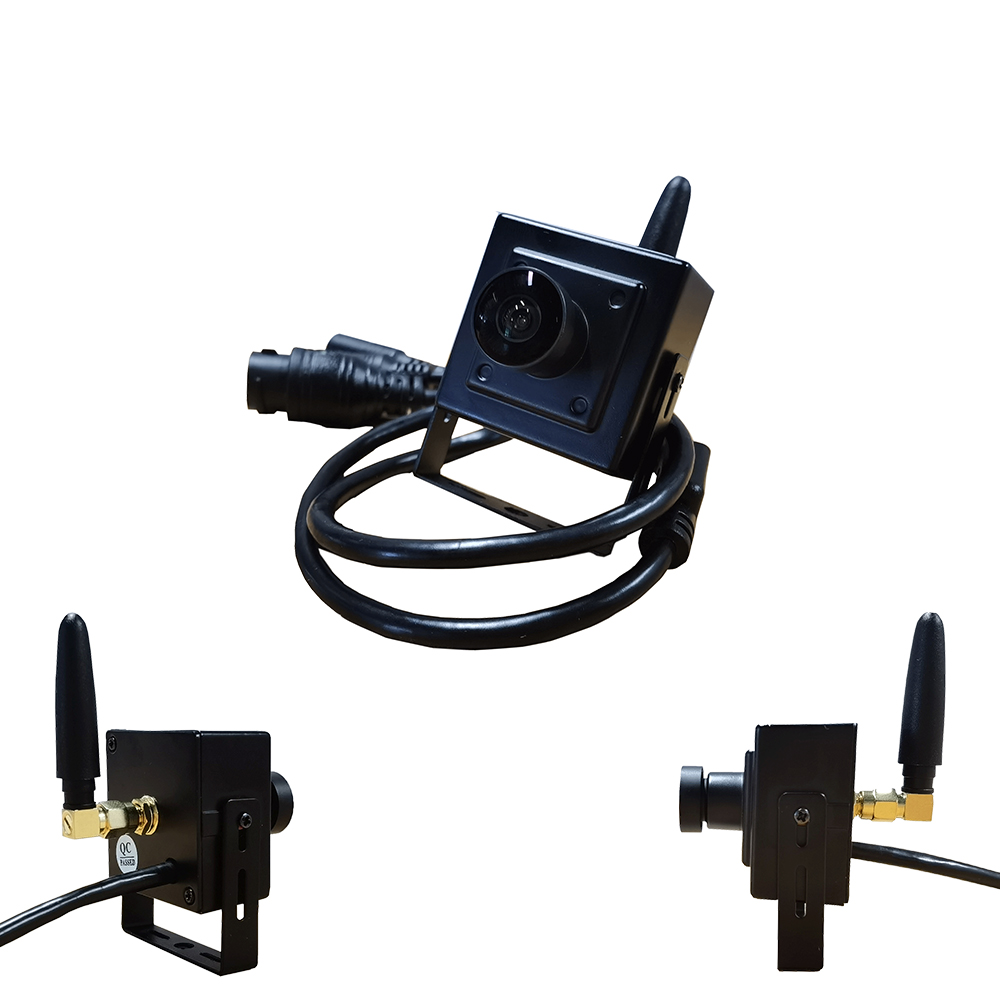

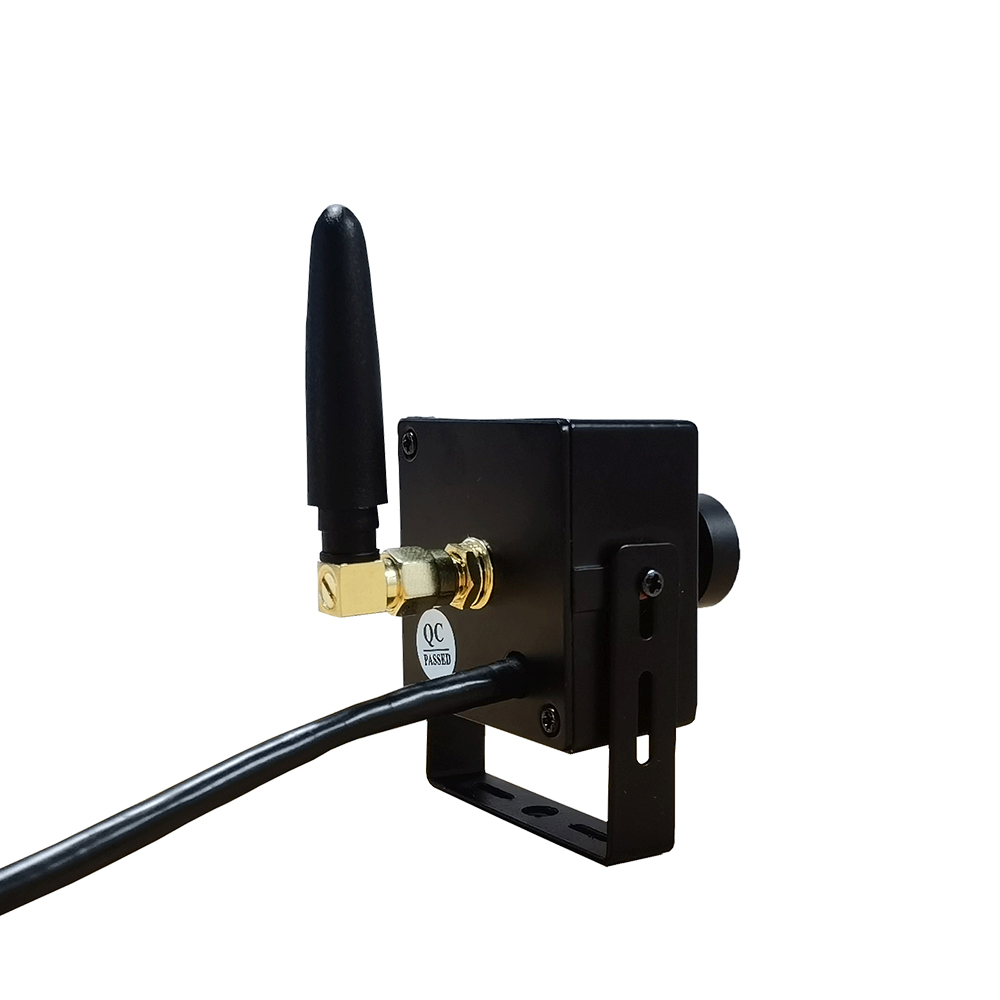

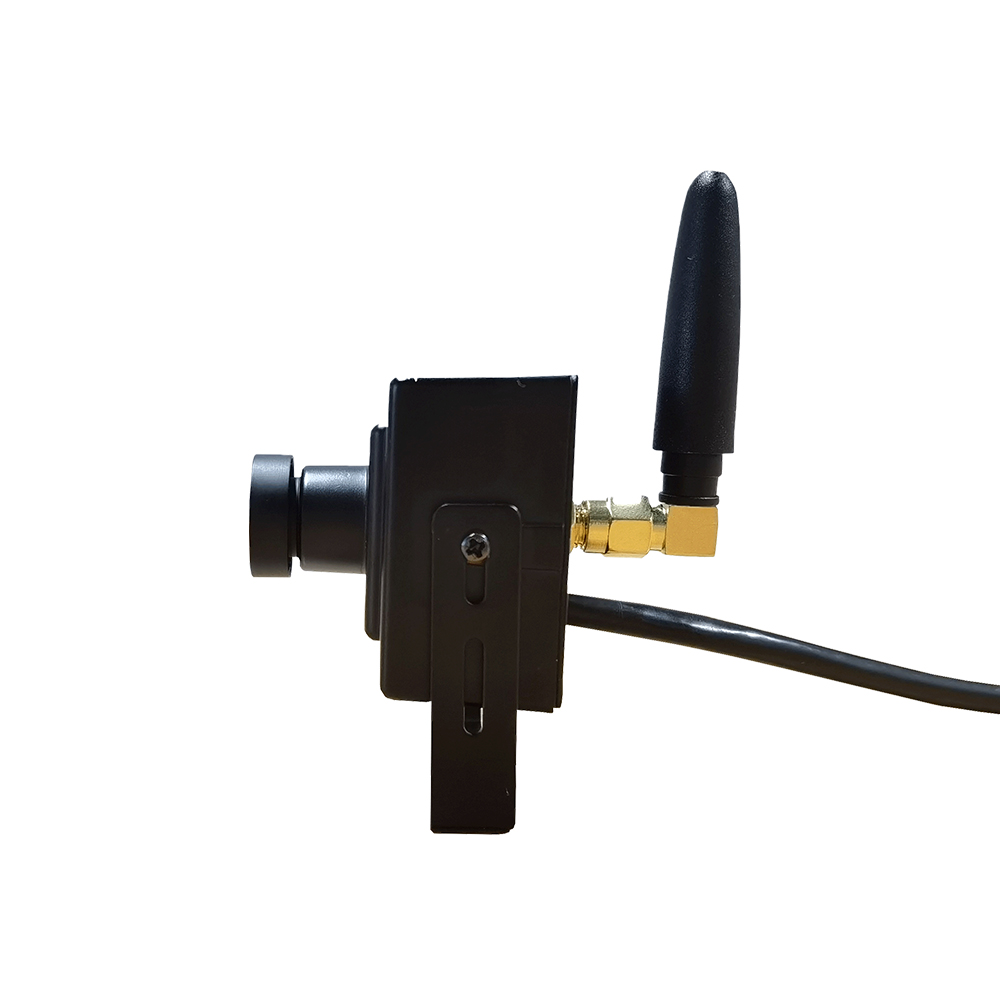

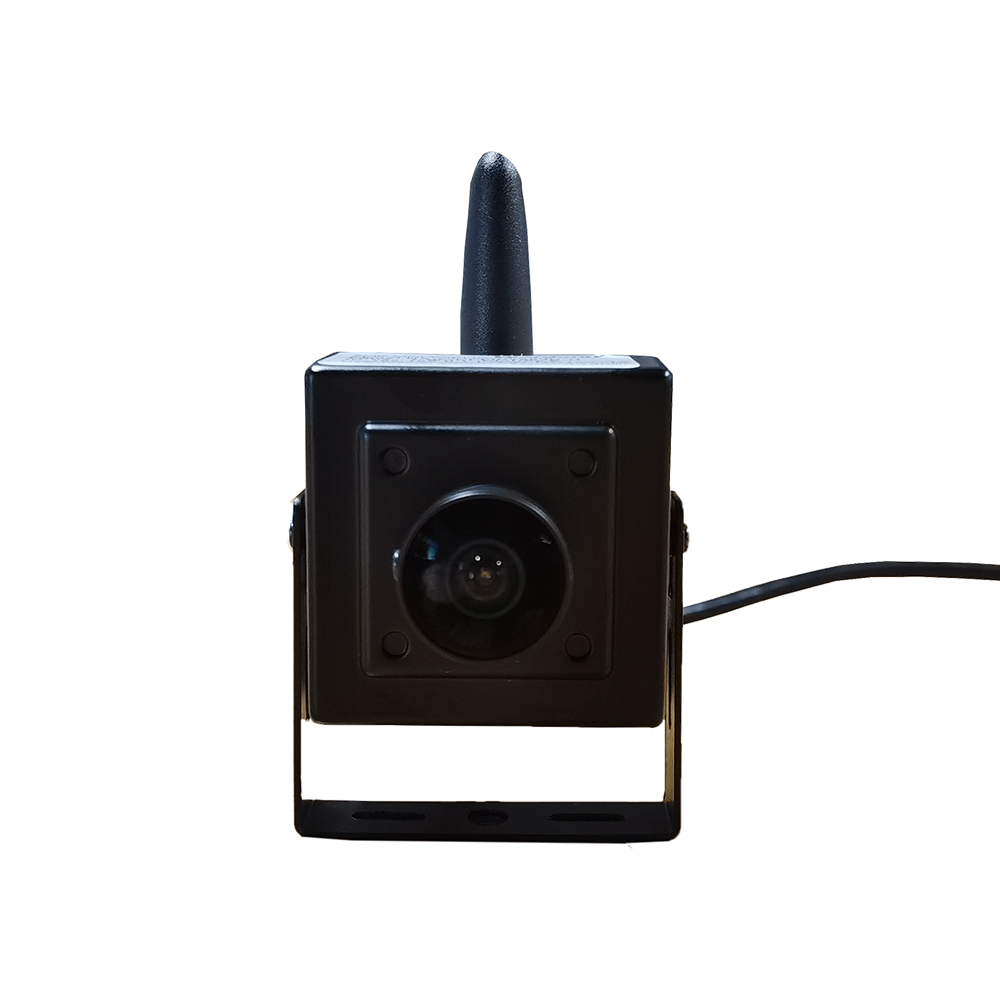

5/2.0MP Mini ATM Network IP Wireless Camera
Support TF card(max:64GB/128GB)
2.0/5.0 Megapixel CMOS
3.7mm pinhole lens/FishEye lens
IR view distance: 15m
Support CMS; Plug& Play function
Onvif; DC12V1A/POE
Wifi, meet with IEEE 802.11b/g wireless standard.
App: Camhi
* Hisilicon high-performance DSP
* High quality progressive scanning CMOS
* Support dual stream, support mobile phone
* Support power supply DC12V1A
* Standard ONVIF Protocol
* Wifi, meet with IEEE 802.11b/g wireless standard
* App: Camhi
| Specification | ||
| Product Name | CCTV H.264 5/2.0MP Mini Network Wireless IP Camera | |
| Model No. | WDM-IP7903H-W | WDM-IP7903B-W |
| Video | ||
| System | Hisilicon high-performance DSP, 3516CV300+Sony335 | Hisilicon high-performance DSP, 3516CV200+Sony307 |
| Sensor | 1/3” 5.0M Pixels Progressive CMOS Image Sensor | 1/3” 2.0M Pixels Progressive CMOS Image Sensor |
| Output resolution | 2592(H)×1944(V) | 1920(H)×1080(V) |
| D/N Mode | Auto switching,black and white vide and IR cut action linkage | |
| Illumination | Color 1.0Lux@F1.2,Black 0.1 Lux@F1.2 | |
| Video processing | H.264 video compression, dual streaming | |
| AVI format, 0.1M~6Mpbs adjustable; | ||
| Video Output | Main streaming: 2592*1944; 1920x1080, 1280x960,1280×720,1024*768, 1280*720; Sub streaming: 960×540,640×360,480×270,352×288,320×240,352×192,320×192,288×192,256×192 | Main streaming: 1920x1080, 1280x960,1280×720,1024*768, 1280*720; Sub streaming: 960×540,640×360,480×270,352×288,320×240,352×192,320×192,288×192,256×192 |
| Frame rate | 5.0MP 25 frame(full real time),support 1~30frame/seconds adjustable | 2.0MP 25/30 frame(full real time),support 1~30frame/seconds adjustable |
| Network interface | RJ45 ethernet,10/100M;RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP protocol supported | |
| Access Protocol | Standard ONVIF Protocol, Support third party access; PC; | |
| Support IE6.0 and aboveSmartphone | ||
| Support Android\iPhone | ||
| Lens | ||
| Lens | 3.6mm lens/3.7mm pinhole or screw lens/1.56mm panoramic lens | |
| Function | ||
| Function | Support WEB configuration, OSD,real-time video transmission | |
| Support motion detection | ||
| Support front end storage, playback and download | ||
| Support uniform client and platform system application | ||
| Support complete SDK for second development. | ||
| Support Wifi connection, meet with IEEE 802.11b/g wireless standard | ||
| Support SD Slot, max 64GB SD Card for 2MP; 128GB for 5MP | ||
| Normal | ||
| Power supply | DC12V1A/POE(optional) | |
| Operation temperature | -10°C~+60°C,10%~90%RH | |
