Features:

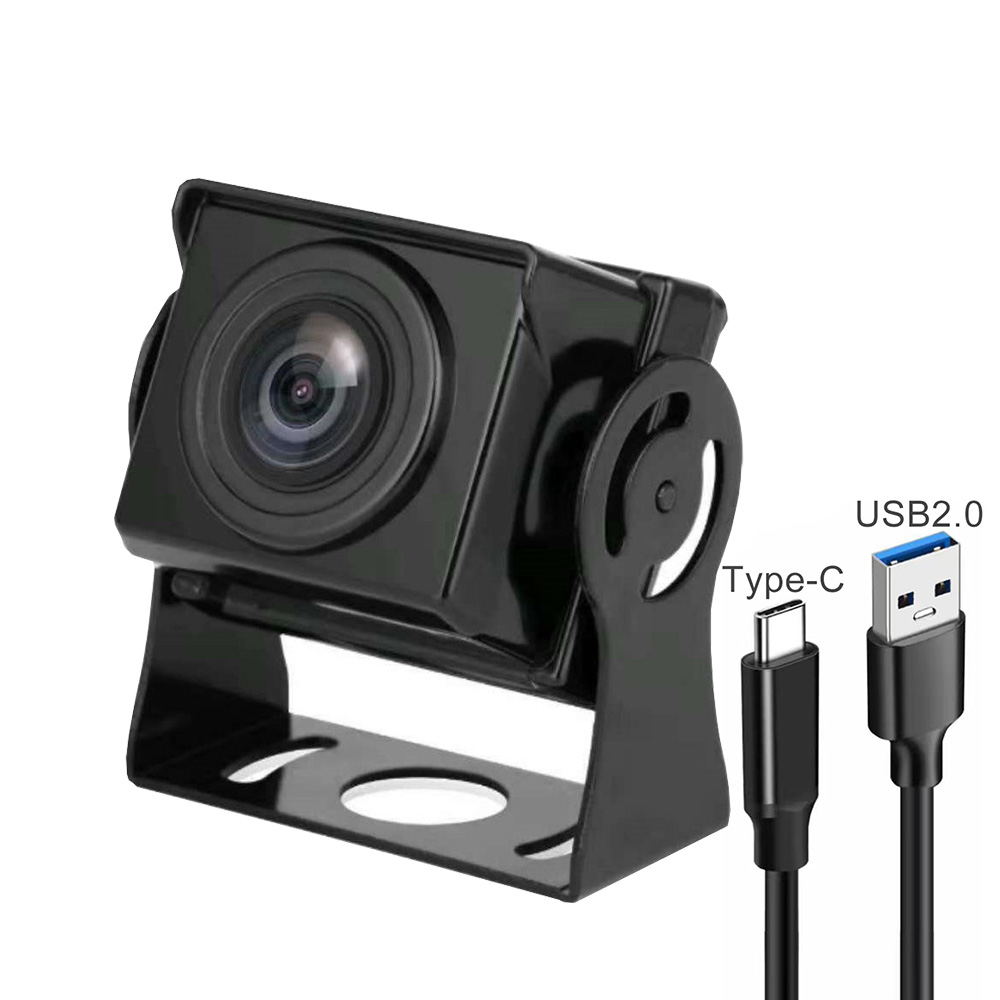

Wardmay Mini Type-C USB Camera
2/5MP resolution
Full@30FPS
Mjpeg/YUV2 image output
No-drive protocol, USB/Type-C Video output
No Night Vision
DC5V
Support RTMP Push Streaming to achieve remote synchronous viewing
Support WinXp/Win7/Win8...Linux with UVC, MAC-OS X10.4.8 or later
| Specification | ||
| Product Name | 2.0/5.0MP USB2.0/Type-C Mini Camera | |
| Model No. | WDM-V6008E | WDM-V6008H |
| Pixel Size | 2.8μm x 2.8μm Square Pixel | 1.4μm x 1.4μm Square Pixel |
| Lens Size | 1/2.9-inch COMS SC2053 | 1/4-inch COMS OV5693 |
| Lens | 3.6mm Lens(Standard)，Wide View / Fisheye Lens available for customization | |
| Active Pixel Array | 2.0MP(1920H*1080V) | 5.0MP(2592H*1944V) |
| Frame rate | Full @ 30 FPS | |
| Output image format | MJPEG/YUV2 | |
| Resolution and frame rate | 320x240MJPG@30fps / 640x360 MJPG@30fps / 1028x720 MJPG@30fps / 960x540P MJPG@30fps / 640X480 MJPG@30fps / 1920*1080 MJPG@30fps / 2592*1944 MJPG@30fps. | |
| Interface type | USB2.0 Cable Or Type-C Output | |
| No-drive protocol | USB Video Class(UVC) | |
| Adjustable parameter | Brightness, contrast, color saturation, clarity , sharpness, gamma, white balance, inverse contrast, exposure | |
| Night Vision | No (standard), support 850 or 940nm led board for customization | |
| Power Supply | DC 5V | |
| Power Consumption | <150mW | |
| Stable Temperature | 0~60° | |
| Size | 34*34、42*42、40*45（mm） | |
| Features | support RTMP Push streaming, to achieve remote synchronous viewing | |
| Supported system | WinXp/Visata/Win7/Win8/Win8......, Linux With UVC (above linux-4.0), MAC-OS X 10.4.8 or later | |
