Features:

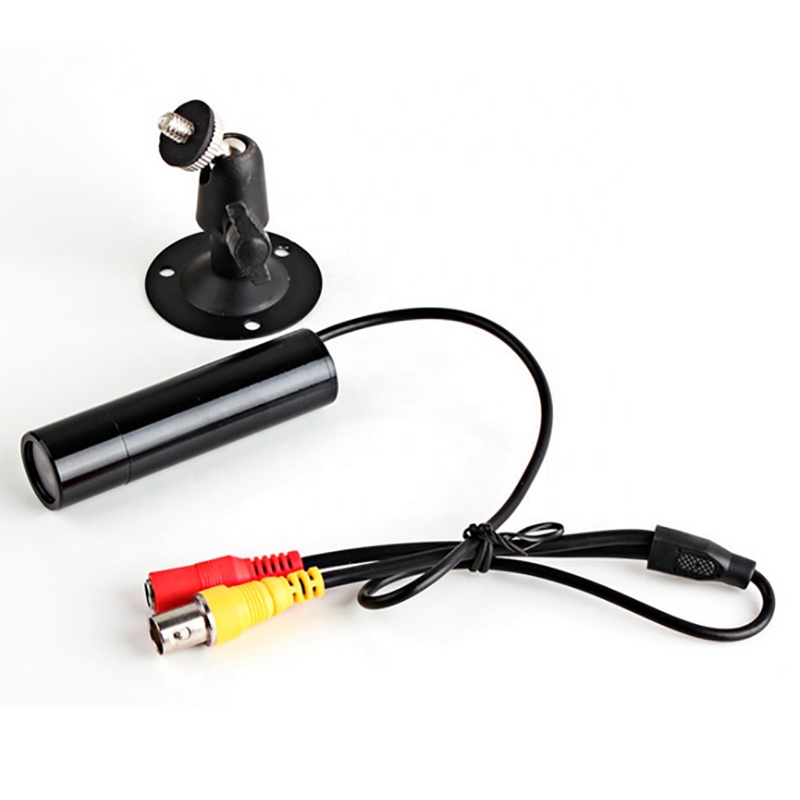

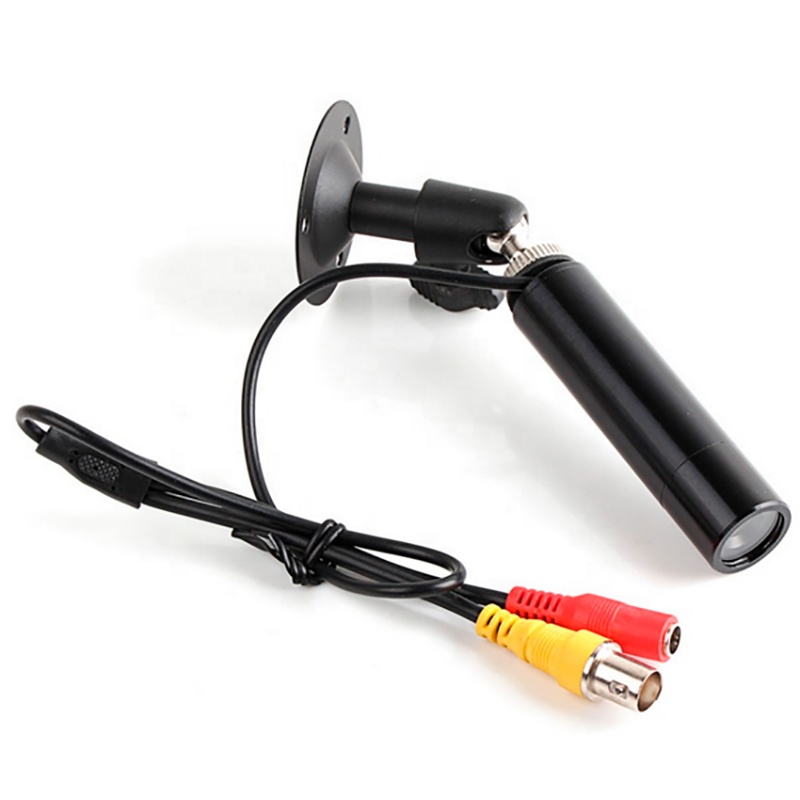

WDM Super Mini 3.6mm Lens CCTV Camera
1/3" sony ccd, 700tvl
ir cut auto switching, 0.01 lux
976 * 582 effective pixel
bnc standard output
3.6/4/6/8/12mm ccd lens
black color
camera size Φ20mm
1, Using the high performance sensor, image is clear and delicate
2, Support IR-CUT dual filter switch, to achieve day and night monitoring
3, Analog 700TVL CCD Video output;
4, DC12V
5, Black, size Φ20mm
| Specification | ||
| Product Name | WDM Sony CCD 700TVL Super Mini 3.6mm Lens CCD Camera | |
| Model No. | WDM-BT6406G | |
| Video | ||
| Sensor | 1/3" Sony CCD | |
| Output resolution | 700TVL | |
| D/N Mode | IR cut Auto switching | |
| Minimum Illumination | 0.01LUX/F1.2(Led on) | |
| Effective Pixel | PAL:976(H)*582(V) | |
| NTSC:976(H)*494(V) | ||
| Signal System | PAL/NTSC | |
| Video Standard | BNC Standard | |
| Video Output | 1CH BNC/CVBS Standard Signal Output | |
| Max Transmission Distance | Common 75-3 cables can be up to 500m | |
| Lens and IR | ||
| Lens | 3.6/4/6/8/12/16/25mm CCD Lens | |
| IR distance | not support | |
| Function | ||
| Shutter Speed | 4/25s-1/45,000s | |
| BLC | Off/Low/Medium/High/Highest | |
| White Balance | Auto White Balance | |
| HLC | Support | |
| Operation Temperature | -10°C~55°C | |
| Power Supply | DC12V | |
| Dimension | black; Φ20mm | |
