Features:

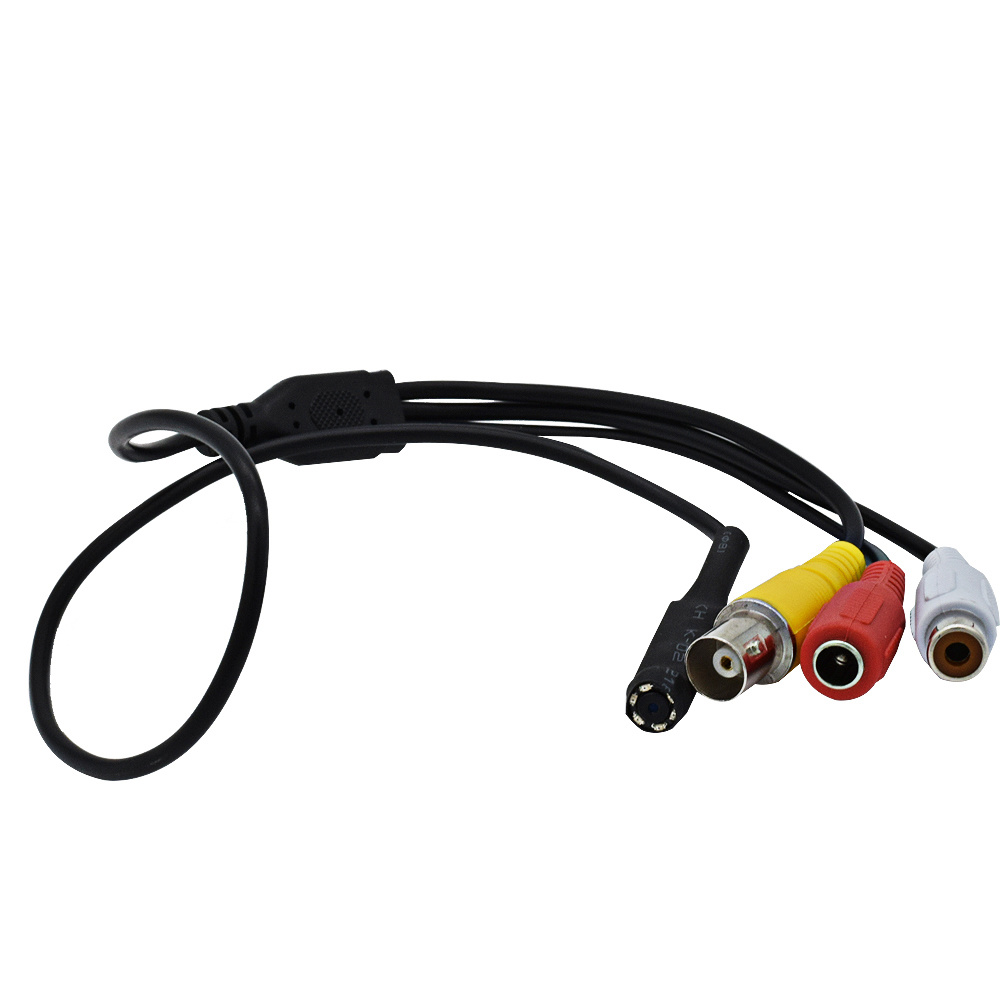

1080P 7mm Mini CCTV Camera Supplier
Input power: 5V-12V, With audio
IR function, IR distance:3-5m
50cm standard cable
2.8mm standard lens,
Camera size Φ7mm
Analog HD 1.3MP AHD video output
6pcs laser lamp leds, 5m night vision distance;
DC12V
Mini size Φ7mm
Black color
| Specification | |
| Product Name | Indoor 1.3MP Super Hidden Mini AHD CCTV Security Camera |
| Model No. | WDM-M6405B |
| Video | |
| Output resolution | 1.3MP (1280*960) |
| D/N Mode | IR cut Auto switching |
| Minimum Illumination | 0.000LUX/F1.2(Led on) |
| Effective Pixel | PAL : 1280*960 @25fps |
| NTSC : 1280*960@30fps | |
| Signal System | PAL/NTSC |
| Video Standard | AHD and CVBS Standard |
| Video Output | 1CH AHD HD/CVBS Standard Singal Output(Switchable) |
| Max Transmission Distance | Common 75-3 cables can be up to 500m |
| Lens and IR | |
| Lens | 3.6mm megapixel lens, low lux |
| IR distance | 6pcs laser lamp leds, 5m ir range |
| Function | |
| Shutter Speed | 4/25s-1/45,000s |
| BLC | Off/Low/Medium/High/Highest |
| White Balance | Auto White Balance |
| HLC | Support |
| Operation Temperature | -10°C~55°C |
| Power Supply | DC12V |
| Dimension | ∮8mm |
