Features:
Wardmay 2.4 Onvif IP Indoor P2P CCTV Dome Camera
HD 5MP CMOS Sensor
H.265 High profile
DC12V/POE
Onvif Protocol
Support ICR filter switching function, day and night surveillance
Widely use for office, shop, home, building, indoor installation
2.8-12mm or 2.7-13.5mm Manual Lens
IR View Distance: 30m(30pcs f5 IR leds)
Onvif
Metal case
DC12V2A/POE for optional
Specification | |||
Product Name | H.265+ Onvif 2.4 protocol 5MP IP Indoor P2P CCTV Camera Dome | ||
Model No. | WDM-IP8723H/M | ||
Video | |||
Sensor | 1/2.7Inch HD 5MP CMOS Sencor | ||
Illumination | Color 0.6Lux/F1.2, B/W 0.08Lux/F1.2 | ||
Output resolution | 2592(H)x1944(V) | ||
WDR | Support Digital WDR>80Db | ||
D/N Mode | Auto switching,black and white video and IR cut action linkage | ||
Video Processing | H.265/H.264 video compression, dual streaming | ||
AVI format, 32Kbs~106Mpbs adjustable; | |||
Video Output | Main streaming: 2592X1944@15fps, 2560X1440@ 20fps, 1920*1080@25fps, support@1~25/30fps adjustable | ||
Sub streaming: 704*576@30fps | |||
Audio Compression | G.711A, support bidrectional talk, audio&video synchronization; | ||
Network interface | 1*RJ45, 10/100M adaptive Ethernet port; support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc | ||
Signal Interface | 1*PWM, 1*IR CUT Interface, Support IR CUT and image linkage control | ||
Access Protocol | Standard ONVIF Protocol, Support third party access; PC; | ||
Support IE6.0 and aboveSmartphone | |||
Support Android\iPhone | |||
Lens | |||

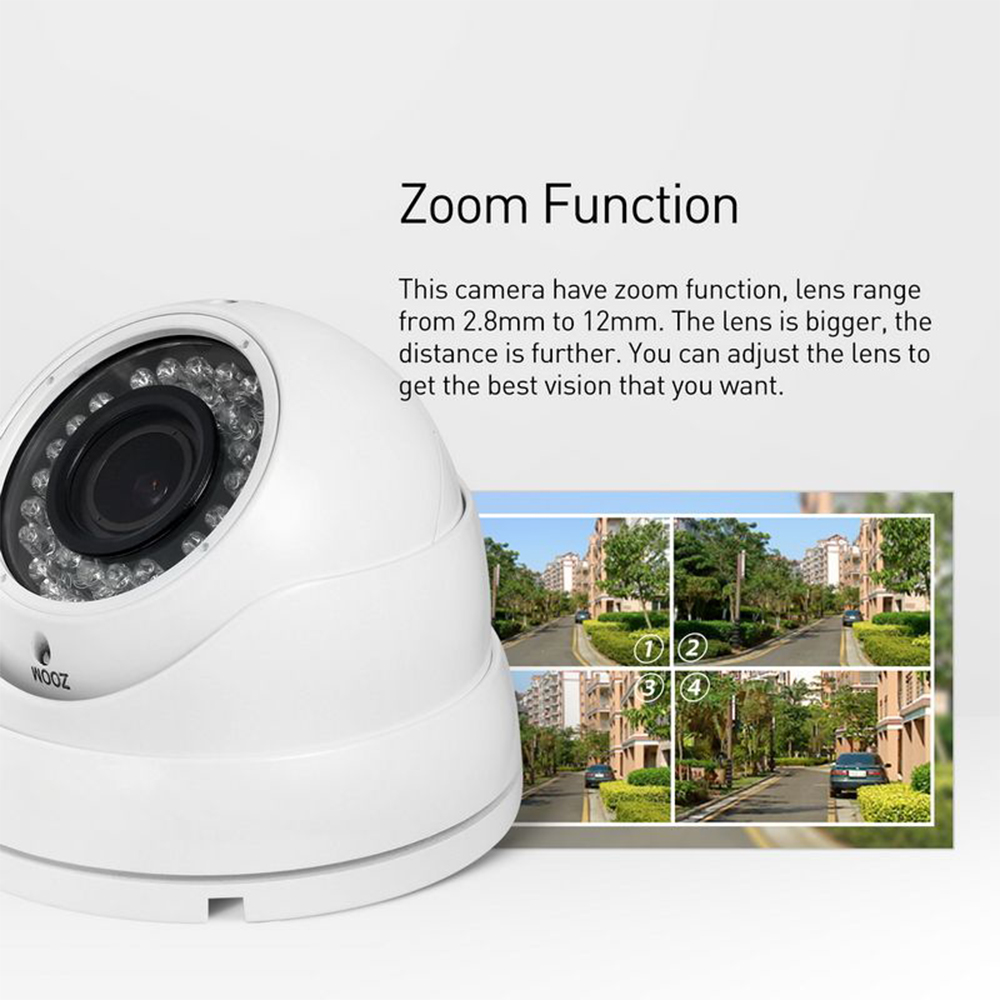

Lens | 2.8-12mm or 2.7-13.5mm Manual Lens | ||
IR distance | 30m(30pcs F5 IR leds) | ||
Function | |||
Function | Support WEB configuration, OSD,real-time video transmission | ||
Support motion detection | |||
Support front end storage ,playback and download | |||
Support uniform client and platform system application | |||
Comprehensive lightning protection,7*24 hours 65℃ temperature stable and reliable testing | |||
Support Mobile View(IOS/Android) | |||
Normal | |||
Power supply | DC12V/POE(optional) | ||
Operation temperature | -10°C~+60°C,10%~90%RH |
