Features:

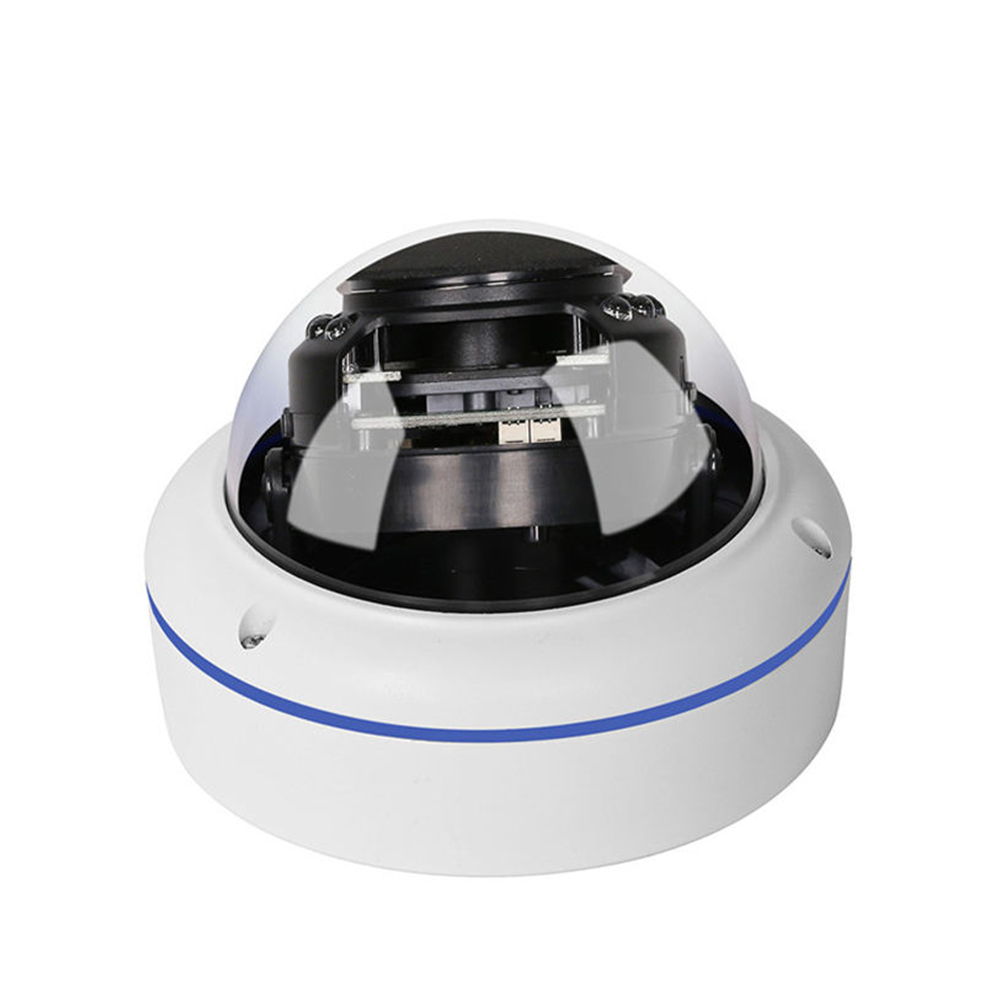

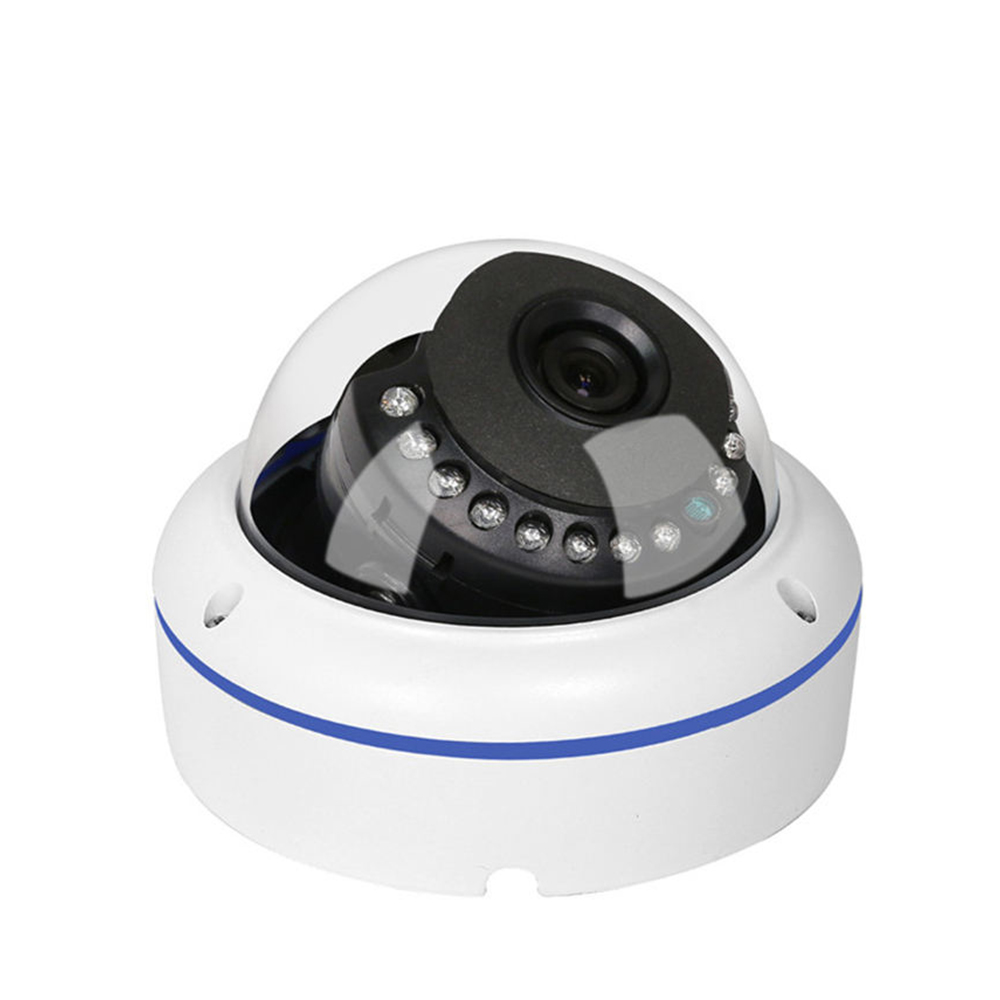

WDM 5MP Sony IMX335 Vandal-Proof AHD IR Dome Indoor CCTV Analog Camera
4 In 1 IR Dome
5MP, AHD
Full Metal Case, support 180/360 fisheye lens
Suitable for home, office, hotel, hospital and other indoor place
3.6/4/6mm Fixed Lens
180/360 fisheye lens for optional
15pcs ir leds
15-20m ir distance
White full metal case
Waterproof ip65
OSD for optional
Indoor use
| Specification | |||
| Product Name | WDM 5MP Sony IMX335 Vandal-Proof AHD IR Dome Indoor Security Camera | ||
| Model No. | WDM-C6714D | ||
| Video | |||
| Sensor | (XM350+SOI K03), 1/2.7” CMOS | (FH2477H+IMX335), 1/2.8” CMOS, Low Lux | (FH8556+IMX335), 1/2.9” Sensor, WDR |
| Output resolution | 5.0MP | ||
| D/N Mode | IR cut Auto switching | ||
| Minimum Illumination | Color: 0.01LuxLux@(F1.2, AGC ON); B/W: 0.001 Lux@(F1.2, AGC ON) | Color: 0.01LuxLux@(F1.2, AGC ON); B/W: 0Lux@(F1.2, AGC ON) | |
| Effective Pixel | PAL: (2560*1536)@25fps | PAL: (2560*1920)@12.5fps | |
| NTSC: (2560*1536)@30fps | NTSC: (2560*1920)@20fps | ||
| Synchronously | Internal | ||
| OSD Menu | Support | ||
| DWDR | Support | ||
| WDR | Not support | Support | |
| DNR | 2D-DNR, 3D-DNR | ||
| Signal System | PAL/NTSC | ||
| Video Output | XVI/AHD/TVI/CVI/CVBS standard | AHD/TVI/CVI/CVBS standard | |
| Max Transmission Distance | Common 75-3 cables can be up to 500m | ||
| Lens and IR | |||
| Lens | 3.6/4mm fixed iris lens | ||
| IR distance | 15pcs LED ir led, 10-15m ir | ||
| Function | |||
| Shutter Speed | 1/50(1/60) seconds to 1/10000 seconds | ||
| BLC | Off/Low/Medium/High/Highest | ||
| White Balance | Auto White Balance | ||
| HLC | Support | ||
| Operation Temperature | -10°C~55°C | ||
| Power Supply | DC12V | ||
