Features:
1080P High Resolution
4/6mm lens for optional
explosion-proof housing
304 stainless steel surface treated with fluorine-carbon spray. elegant structure. explosion proof, dust proof, water proof, rust-proof…
Main stream:1920X1080(video resolution); sub stream:320X240 352X192 320X192 288X192 256X192.
Optics class toughened ultra clear white explosion proof glass, flux rate higher than 96%, completely eliminate infrared light halos.
We can customize right camera size according to your requirement
IP68 Waterproof
Suitable for:
Applicable for the factories having the explosive mixtures formed from class ⅡA ⅡB ⅡC T1-T6 group flammable gas, steam with air in area No.1, No.2, and appearing the explosive hazardous area due to the mixture of flammable dust and air in area No.20, No.21 and No.22, such as oil field, chemical plant, port, oil storage, steamship, oil drilling platform, gas stations, coal mine, aviation, military, medicine, steel, firecrackers production, machinery, food processing and storage and so on.
| Specification | |

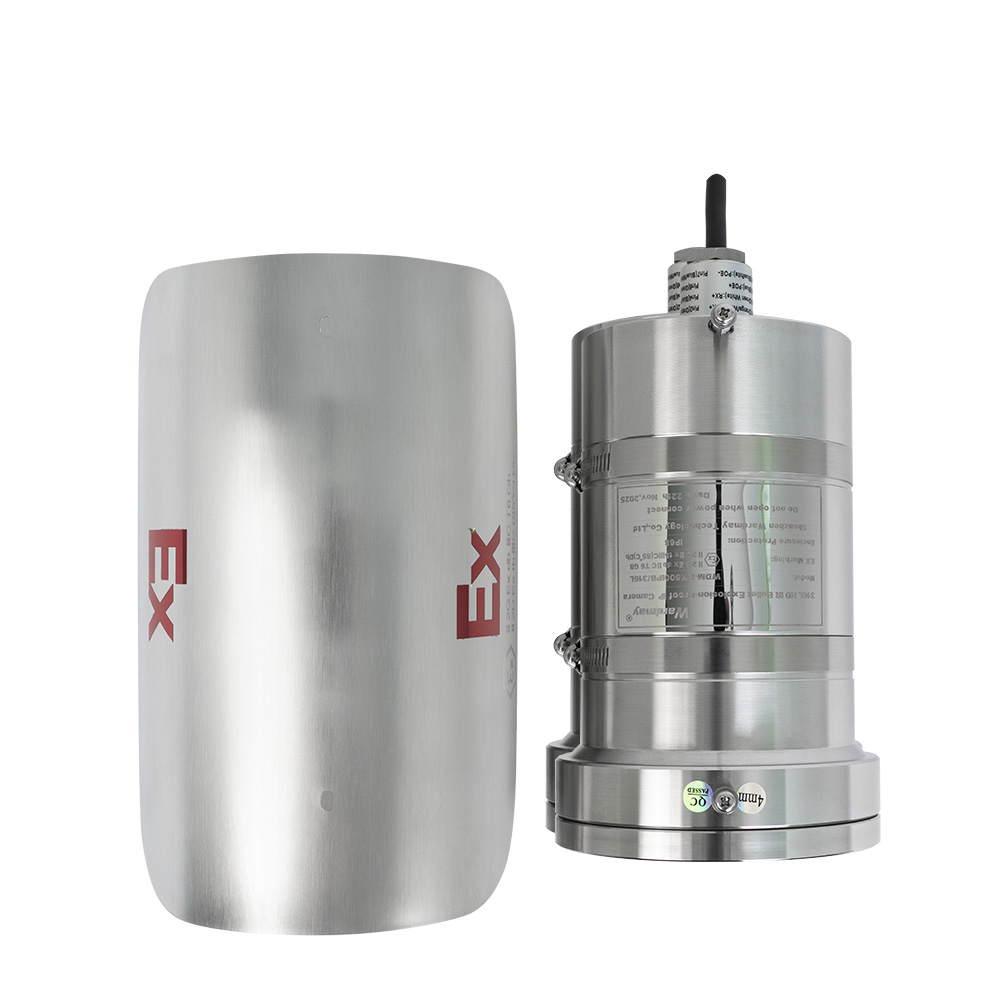

| Product Name | 304 Stainless Steel Explosion-Proof IR Bullet IP Camera |
| Model No. | WDM-EX200IPB |
| Video | |
| System | High-performance DSP, His3516C+Sony Chip |
| Sensor | 2.0M Pixel 1/2.8" CMOS Sensor |
| Output resolution | 1920(H)×1080(V) |
| D/N Mode | Auto switching, black and white vide and IR cut action linkage |
| Illumination | Color 1.0Lux@F1.2, Black 0.1 Lux@F1.2 |
| Video processing | H.264 video compression, dual streaming |
| AVI format, 0.1M~6Mpbs adjustable; | |
| Video Output | Main streaming: 1920*1080, 1280*960, 1280×720, 1024×768, 1280×720 Sub streaming: 960×540, 640×360, 480×270, 352×288, 320×240, 352×192, 320×192, 288×192, 256×192 |
| Frame rate | 2.0MP 25/30 frame(full real time), support 1~30frame/seconds adjustable |
| Network interface | RJ45 ethernet, 10/100M; RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP protocol supported |
| Access Protocol | Standard ONVIF Protocol, Support third party access; PC; |
| Support IE6.0 and aboveSmartphone | |
| Support Android\iPhone | |
| Lens | |
| Lens | 4/6mm lens for optional |
| IR distance | 30-60M IR Range, |
| Function | |
| Function | Support WEB configuration, OSD, real-time video transmission |
| Support motion detection | |
| Support front end storage, playback and download | |
| Support uniform client and platform system application | |
| Support complete SDK for second development. | |
| Housing Material | |
| explosion-proof housing | 304 stainless steel, polishing passivation treatment, Rust corrosion resistance, never fade |
| Ingress Protection | IP68 |
| Interface spec | G-1/2" |
| Method of installation | bracket mount |
| Atex Mark | II 2G Ex db IIC T6 Gb, II 2D Ex tb IIIC(85 degree) Db |
| IEC Mark | Ex dIIC T6 Gb/DIP A20 TA, T6 |
| Normal | |
| Power supply | DC12V/POE(optional) |
| Working Current | < =1A |
