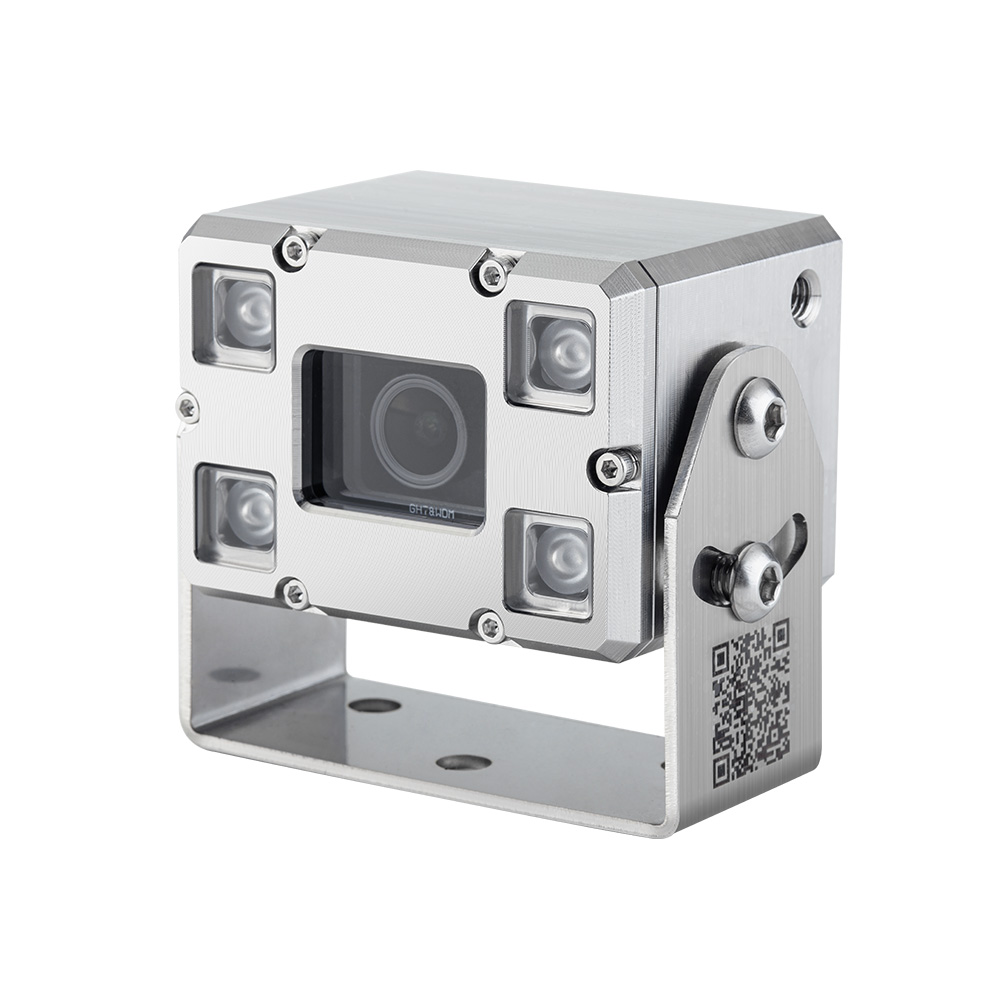

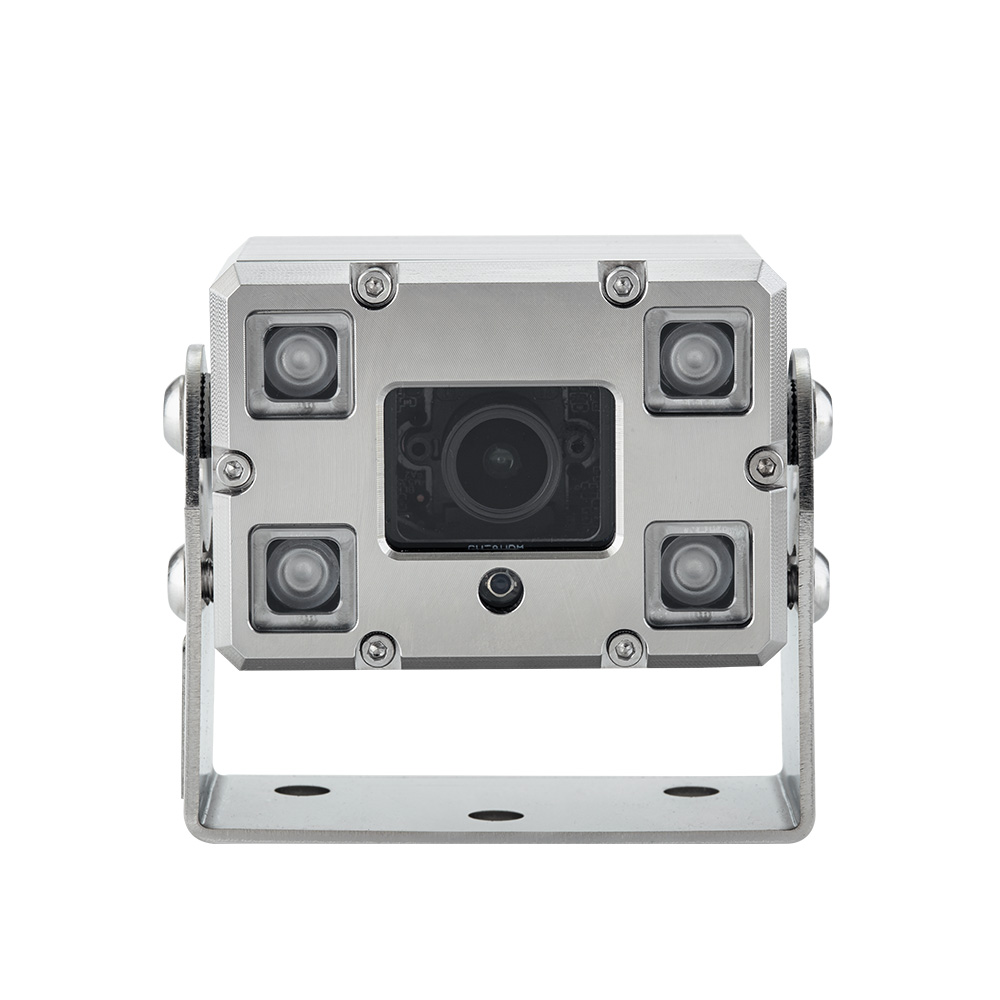

2MP IR Full Color Mini Heavy Duty 304 Explosion Proof Camera

Adopt 304 Stainless Steel Material

2MP CMOS

3.6mm F1.0 lens, full color starlight image

Thick and highly transparent tempered glass

4pcs IR/White Led up to 25m in the dark

Support PAL/NTSC

DC12V

Widely used in heavy or large mobile equipment, such as mobile cranes, forklifts, tower cranes, tanker, marine, excavators, loaders, aerial cranes and so on.

Product Description:
Cameras of the WDM-MC4000B is a kind of compact anti-corrosion camera which is widely used in heavy or large mobile equipment, such as mobile cranes, forklifts, tower cranes, marine, excavators, loaders, aerial cranes and so on.


The main characteristics are as follows:
Adopt 304 stainless steel material ensures its own durability and can also cope with more complex working environments
The camera glass is made of thick and highly transparent tempered glass which can withstand stronger impacts;
Built in 2.5W automatic heating system, which can cope with situations where it cannot be used normally due to icing in extreme low temperature weather (optional);
Adopt Sonny ultra-low illumination chip, combined with F1.0 lens, which can achieve full color starlight image;
Adopt double-tooth self-locking design which can handle the situation where the mobile device is vibrated and causes the image offset;
Following the explosion-proof design concept, the whole camera adopts isolation design to avoid the phenomenon of equipment being unable to work normally due to electric shock caused by the housing.

Technical Data:

WDM-MC4000B Series.pdf
